Forster unico XS | Turn/tilt windows

Thermal insulated windows

Unique slimness

Only 23 mm facing width

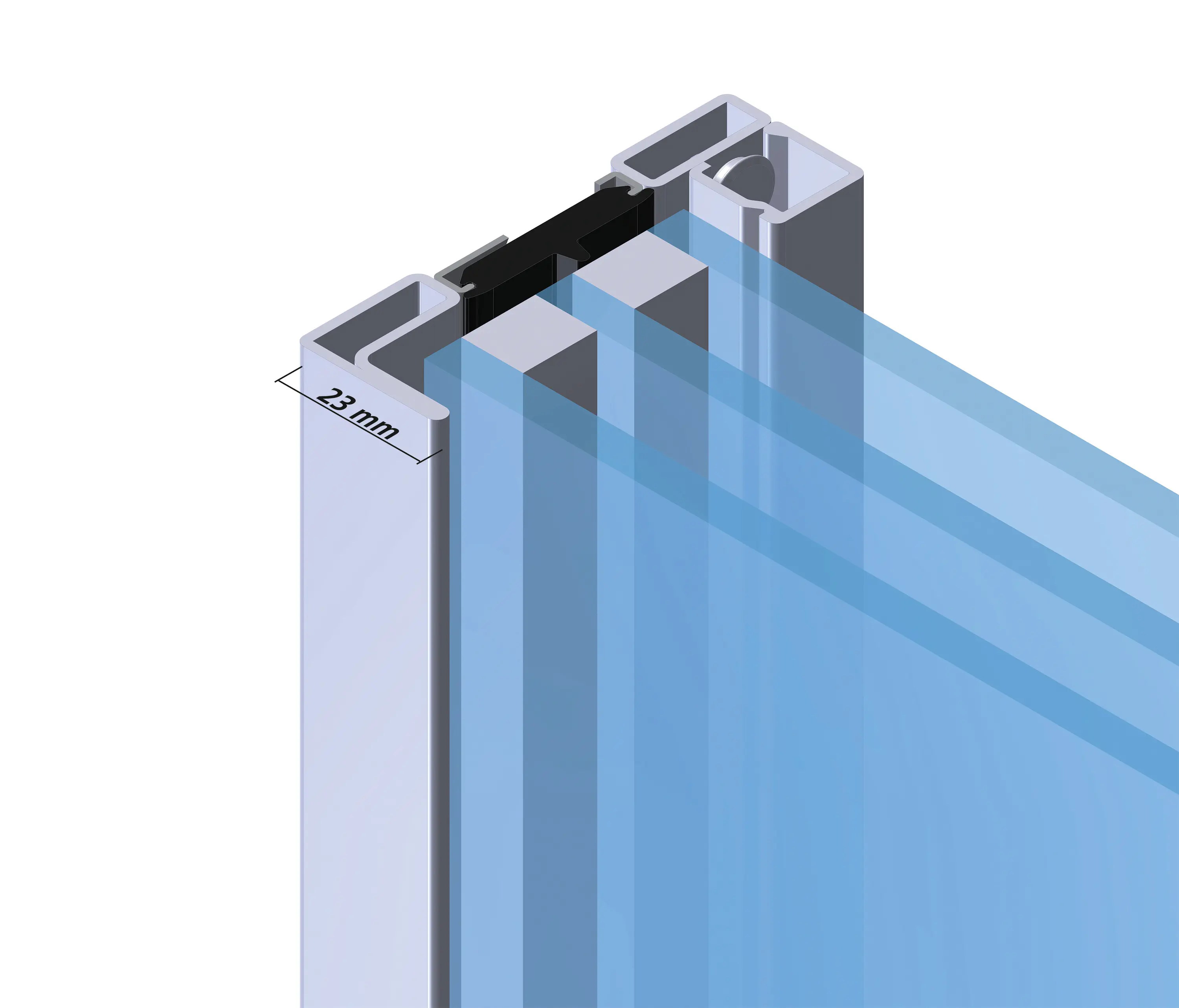

Only 23mm:

Ultra-slim profiles for thermal insulated windows

Unique slimness

Forster unico XS is a system addition that provides thermal insulated window elements and fixed glazing with ultra-slim facings. At the same time, it opens up a diversity of applications. This applies to the numerous opening variations as well as the possibility of installing fillings up to 60 mm to achieve very low U values and excellent sound insulation values. The unique profile design made of 100% steel is ideally suited for renovating old buildings.

Material options

Bright steel

Continuously galvanized steel

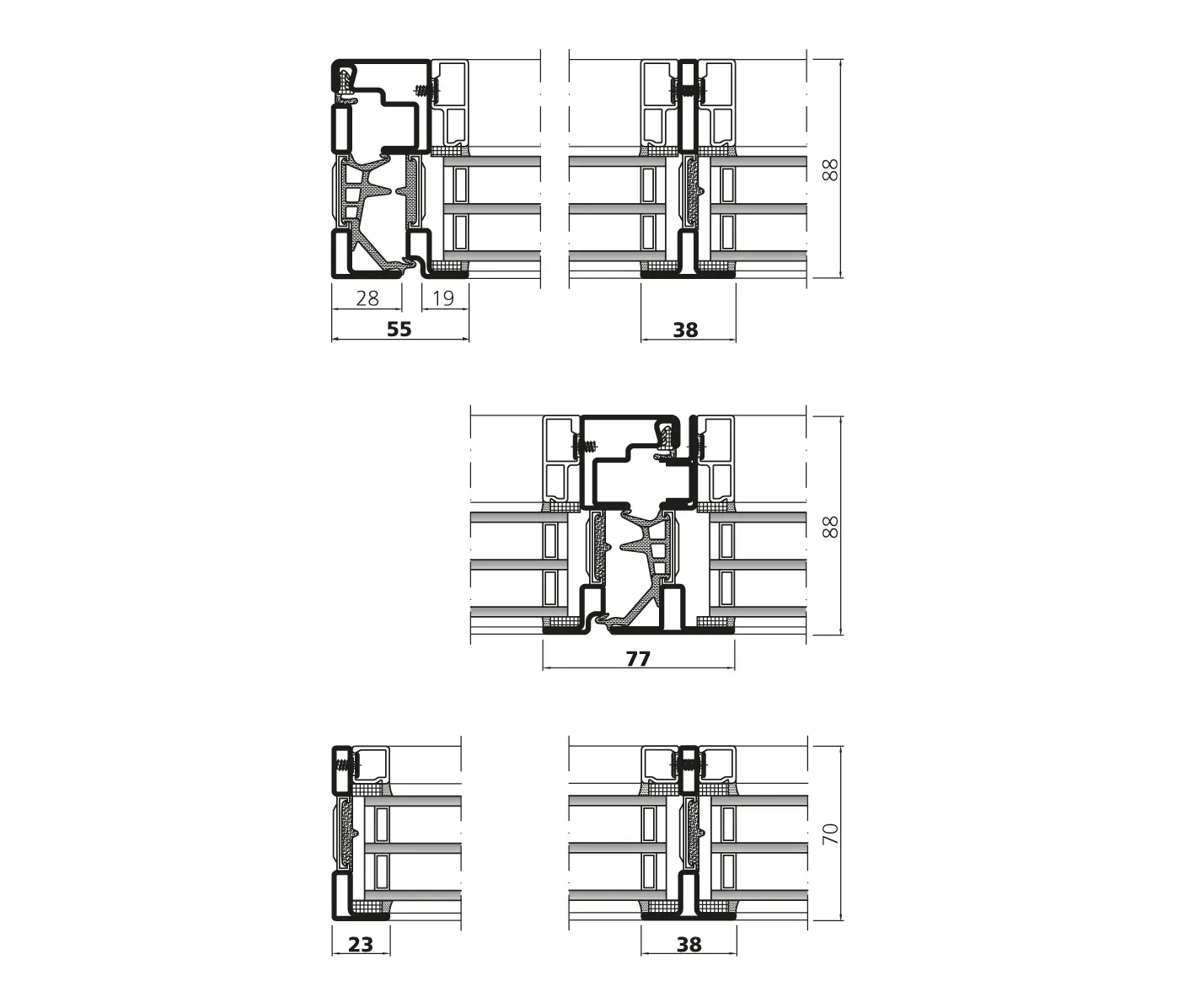

Face width

Single and double vent casements from 55 mm

Fixed glazing from 23 mm

Dimensions

Tested casement sizes up to 1240×2480 mm (W×H)

Fittings

Concealed system for both single and double casements of side-hung and turn/tilt windows for casement weight up to max. 150 kg

Performance specifications

Thermal insulation Uw-values up to 0.9 W/(m ∙K), fixed glazings up to 0.8 W/(m2∙K)

Enhanced tightness from three circumferential sealing layers

Filling elements up to 60 mm (triple insulation glazing)

All system applications comply with EN 14351-1 (CE marking)

Sound insulation values up to Rw = 47 db

System properties

Stove enamelling or powder coating with no temperature restrictions

Glazing beads in aluminium 15–50 mm and in steel 15 and 19 mm

Wet glazing, stress-relieved and drained
