Product description

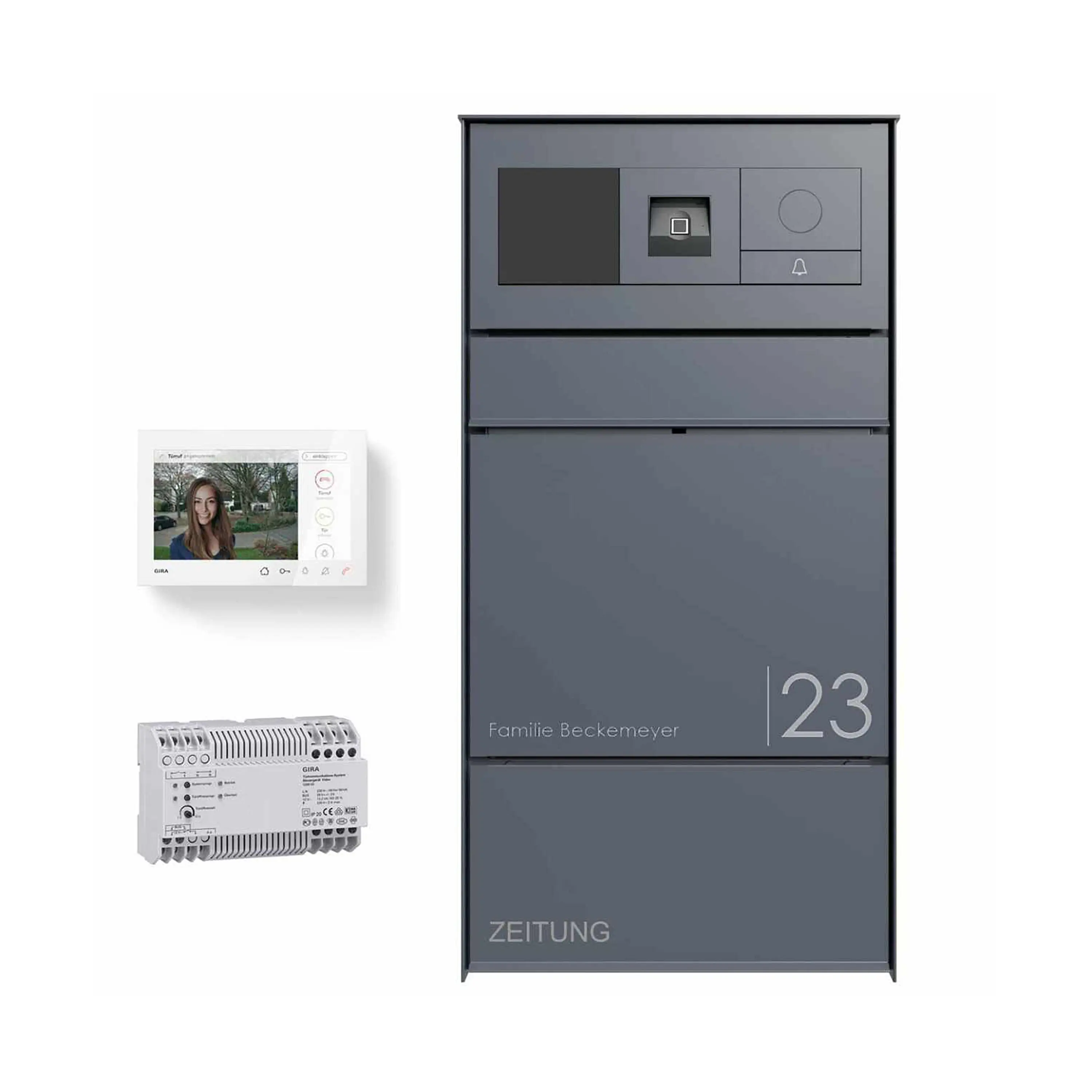

Design surface-mounted letterbox GOETHE AP with newspaper compartment - RAL as desired - GIRA System 106 Keyless In - VIDEO complete set High-quality surface-mounted letterbox with newspaper compartment and seamlessly integrated Gira System 106 in flush-mounted design. The modern GOETHE letterbox is ideal for sophisticated entrance areas. The straight-lined design without a visible lock makes this letterbox look particularly elegant. 3 GIRA system modules are included, so the letterbox can be used directly. The matching GIRA home station and the control unit to complete this letterbox are included. The modules can be replaced at a later date as required thanks to the simple retaining system. The dimensions of the individual box allow a capacity of approx. 16 litres, the large insertion guarantees no crumpled mail even with DIN C4 envelopes and magazines or after several days of absence. The innovative push-key lock is invisibly concealed inside the letterbox. The key is simply inserted into the existing opening (no turning necessary) and the door opens. With the arrangement of the lock, this letterbox is designed so that the removal door prevents mail from falling towards you. Thanks to the water drainage edge, the mail inside is optimally protected from the weather. The insertion flap is equipped with high-quality axle dampers, so quiet closing is guaranteed and there is no annoying rattling caused by the weather. The surface-mounted letterboxes in the GOETHE collection are characterised by the consistent use of stainless steel and aluminium. The result is very high durability and sustainability. The design has been developed by our own engineers with a view to high flexibility or modularity, simple spare parts assembly and uncomplicated self-assembly. Spare parts for all GOETHE systems are available directly in our shop. Thanks to the design, self-assembly is uncomplicated. Protected utility model according to DPMA file number DE: 20 2021 101 679.5 High-quality surface-mounted letterbox made of stainless steel and aluminium. Quality production - Made in Germany by Briefkasten Manufaktur Lippe. Letterbox (BH 400x400mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL of your choice. Innovative push-key lock with 2 keys. Letter insertion and removal from the front. Insertion flap with high-quality axle dampers for very quiet insertion of mail. The letterbox complies with DIN/EN 13724. Insertion size (3.5 cm x 36.0 cm) for C4 landscape, large letters also fit in here without bending. The removal door opens from top to bottom. This prevents the mail from falling towards you. Newspaper compartment (BH 400x200mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL of your choice with stainless steel laser inscription "ZEITUNG" (font ARIAL, if name/house number, then the same as your chosen font). Newspaper compartment can be opened from bottom to top. Function box (BH 400x200mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL of your choice. Name plate made of stainless steel, powder-coated in RAL colour. Your name and/or a bell are optionally lasered onto the name plate. Optionally with house number, lasered (a name inscription can also be deposited here). Optimal rain protection due to rain protection edges and a rain canopy made of 3mm aluminium AlMg3 W19, powder-coated in RAL of your choice. Side cladding made of 3mm aluminium AlMg3 W19, powder-coated in RAL of your choice. Incl. mounting rail for wall mounting. Incl. GIRA home station, power supply & control unit enclosed, System 106 door station module, Keyless In fingerprint module & camera module installed. Camera module Gira System 106 - 5561 000, installed without wiring A high-quality camera with high light sensitivity is concealed behind the replaceable black glass panel. Thanks to a detection angle of 100°, the user is always in the picture about what's happening outside his front door. Keyless In fingerprint module Gira System 106 - 5551 920, installed The GIRA fingerprint module as a professional biometric access control system based on the new generation of area scanning technology. Start-up and user management is carried out via the Gira Keyless In app. Use as a stand-alone device with Gira TKS switching actuators or in combination with the Gira door communication system as a door call system for buildings with several residential units. Scanning of the lowest skin layer via high frequency. High detection rate and manipulation security. Evaluation of the unique characteristic features of the living human finger. Up to 99 fingers can be managed by the fingerprint reader. Reliable recognition of fingers that have been slightly injured during gardening, for example (only the top layer of skin has been injured). Data protection through encryption process. Fast response time from finger placement to release: up to 30 stored fingers approx. 1 s, up to 99 stored fingers approx. 3 s. Night design of the fingerprint area for orientation by means of white LED illumination. 360° positioning of the finger possible. 3-colour LED status display for visual signalling during programming and operation. Master PIN number on enclosed sealed security card if the administrator finger is no longer available. The unit can be factory reset with the enclosed security card. Acknowledgement buzzer for acoustic signalling for user or installer. Acoustic warning tone in case of unauthorised removal of the fingerprint unit for sabotage detection. Sabotage switching with switching actuator in the door communication system. Inputs and outputs: Plug connector Connecting cable for Gira door communication system. Gira System 106 door station module - 5565 920, installed without wiring Compact voice module with integrated call button for communication between inside and outside. A high-quality microphone and weather-proof loudspeaker ensure good communication. Power supply via 2-wire bus. Additional connection for ZV (e.g. necessary from 3rd camera module). All other System 106 modules (except voice module) are supplied with power via the door station module. Gira video surface-mounted home station 7 1209xx, enclosed Video home station with a 17.78 cm (7") TFT colour display and convenient hands-free function for surface mounting or wall mounting with flush-mounted device box or cavity wall box. With the optional stand (see accessories) also suitable for placement on furniture. A 32 GB SD memory card is included for internal image storage. Full-surface glass front with touch functionality and tactile feedback. Further information Control device video REG Gira 1288 00, enclosed Control device for supplying the audio and video components of the Gira door communication bus. Supply of the reverse-polarity protected and short-circuit-proof 2-wire bus when using video components such as colour camera, TFT colour display. Up to 2 door stations with colour camera and 28 home stations with TFT colour display can be supplied via the video control device. A total of up to 15 colour cameras can be controlled by the video control device (5 video door stations and 10 TKS camera gateways), of which two door stations with colour camera can be supplied with voltage by the video control device. The other colour cameras must each be operated with their own power supply for door communication. Self-resetting electronic short-circuit and overload detection of the operating voltages and the bus connection. Buttons for system and door opener programming. LED status indicators for operation, overload, system programming and door opener programming. AC 12 V output for power supply of a commercially available electric strike. Relay output for switching a electric strike with its own power supply. Door opener switching time continuously adjustable from 1 to 10 s. Further information Power supply DC 24 V 300 mA Gira 1296 00, enclosed Power supply DC 24 V for supplying door communication components. Supply for Keyless In module. Important information Camera or intercom preparation Intercom systems must be connected by an electrician. Contact your trusted electrician for planning, installation and wiring. Water protection To achieve optimum water protection for your mail, the letterbox or letterbox system should, if possible, be located under a canopy. Mail is only protected from water if it is completely inserted in the box and the insertion flap is closed. Mail that is not completely inserted allows moisture and dirt to penetrate the letterbox. This unit is protected against water ingress in accordance with DIN EN 13724. Water ingress is not a reason for complaint.

Concept

The modern GOETHE letterbox is ideal for the sophisticated entrance area. The combination of discreet design (without visible lock), very high quality and innovative technology make this letterbox an elegant and functional design element. The innovative push-key lock is concealed invisibly inside the letterbox. The key is simply inserted into the existing opening (no turning necessary) and the door opens. The locking mechanism will soon be expanded to include an electronic lock for operation via Bluetooth or 12V for fingerprint systems. The insertion flap is equipped with high-quality axle dampers, so quiet closing is guaranteed and there is no annoying rattling due to weather conditions.

More about this product

Categorised in House entrance - Mailboxes - Mailbox systems - Interior construction.

Part of the collection WALL-MOUNTED LETTERBOX.

Manufacturer Briefkasten Manufaktur

Family Goethe

Architonic ID 20296184

Order number 215-AP-1-SP-ZF-KSGI106FP

Year of Launch 2022
