Frequency

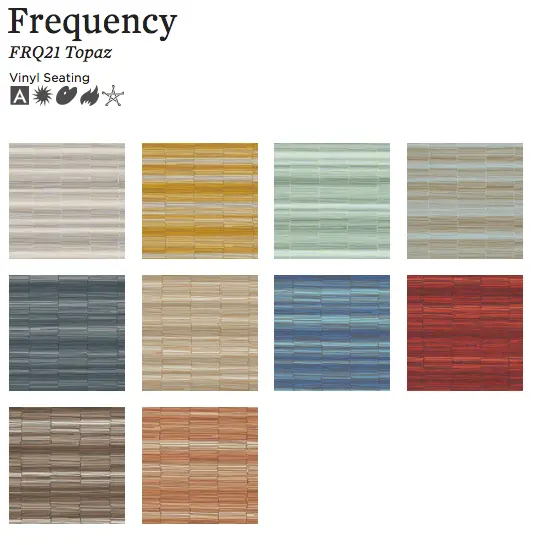

*See all colors of this pattern in the Image Gallery.

Specifications:

Content: Vinyl Surface with Polyester Backing

Finish: Advanced Soil and Stain Resistant Top Coat + ink resistance

Backing: 100% Polyester

Weight: 30.0 oz./lin. yd. 1.0 oz.

Width: 54 inches

Repeat: Horizontal: 17.625 inches, Vertical: 8.875 inches, directional

Roll Size: 30 yards

Performance Characteristics:

Abrasion Resistance ASTM D-4157: Exceeds 100,000 double rubs- heavy duty

Break Strength CFFA-17: Warp: 121.0 lbs. min., Fill: 72.0 lbs. min.

Tear Strength CFFA-16: Warp: 18 lbs. min., Fill: 18 lbs. min.

Colorfastness to Light CFFA-2: 1000 Hours, Class 4.5

Crocking CFFA-7: Dry: Class 5.0, Wet: Class 5.0

Fluid Barrier: Inherent Fluid Barrier

Antimicrobial: The protective finish on this product includes silver ion technology which inhibits the growth of microbes on the protected surface.

Flammability:

California Technical Bulletin 117-2013: Passed

UFAC: Class 1

NFPA 260: Class 1

NY / NJ Port Authority (FTMS 191-5903): Passed

Boston Fire Code BFD 1X-1: Passed

FAA 25.853 (a): Passed

MVSS 302: Passed

IMO FTP MSC 307 (88) Part 8, 3.1 & 3.2: Passed

Colour:

Yellow

Style:

Texture, Stripes, Abstract

Abrasion:

100000, 100,000+ double rubs
