Product description

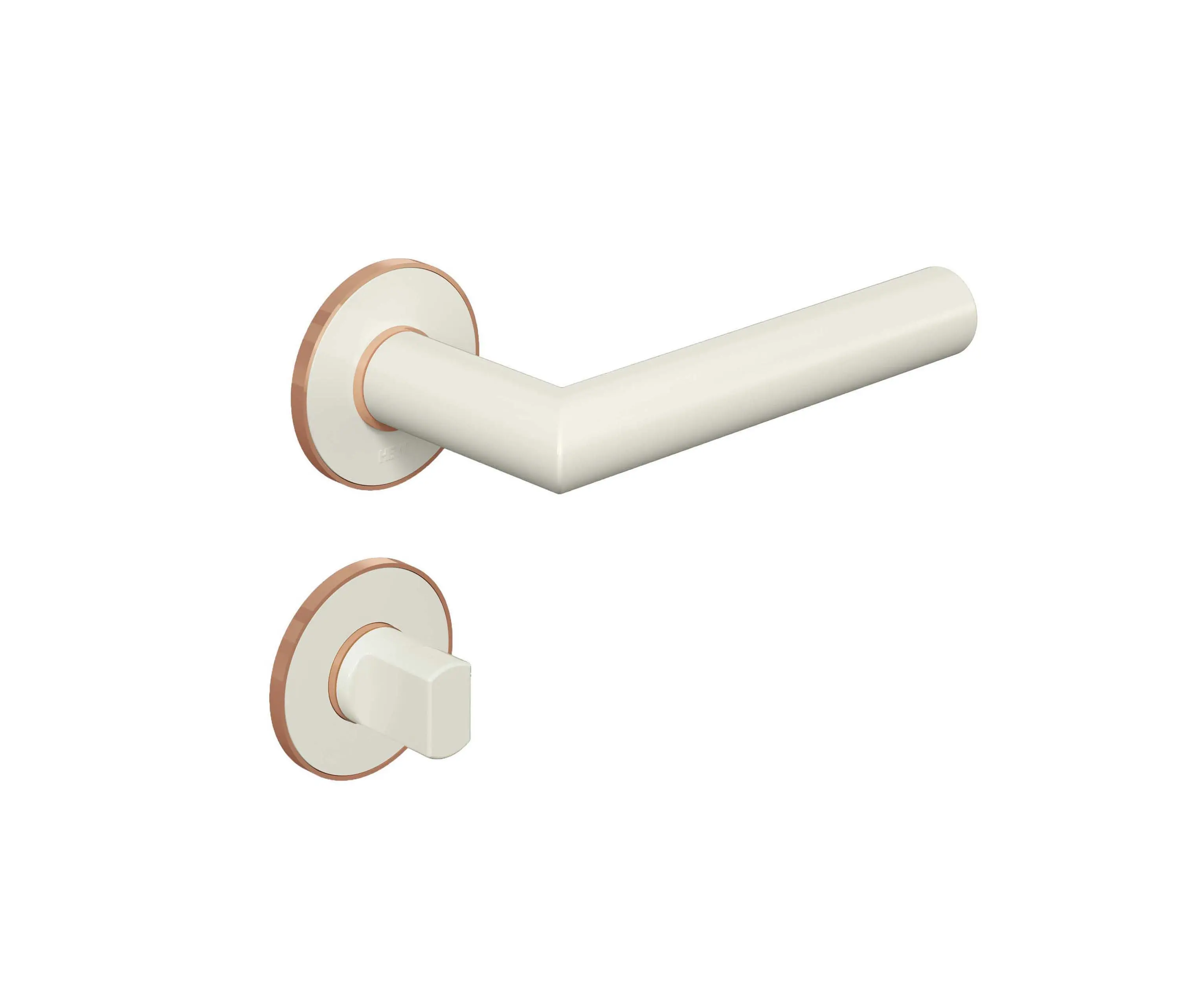

Vacant/Engaged fitting
Flat roses according to DIN 18255 and EN 1906 and inlay made of polyamide, consisting of:
Lever handle design 162.21P... in mitre cut made of polyamide, with continuous steel core up to the end of the lever handle, through-dyed, 21.3 mm diameter, with stepped shoulder guide and latching groove, with grubscrew M5, for additional fixing of the door lever handle on the square spindle, for optimal transfer of force to door leaf.
Flat lever rose and rose with turn knob, 305... and 306.23VI..., round, diameter 52 mm, 4.0 mm high. Concealed, non-loosening connection: Fixed rotating bearing of the lever handle and the roses, and in the door leaf dipping support pin. Easy and fast assembly, through preassembled assemblies. WC version with emergency opening by means of coin and occupancy disc (red/green indicator) on the outside.
Rose material made of stainless steel (1.4301) in PVD-coating, rose inserts made of polyamide high-gloss
Designed and tested for the projects segment, user category to EN 1906 - Class 4
Durability: Class 7
Door weight: No classification specified
Fire resistance: Class 0
Safety: Class 0
Corrosion resistance: Class 4
Burglary protection: Class 0
Design-type: U

Article no.: HEWI 162PCIV02230

Concept

With bicolor HEWI offers a unique fitting which enables individual design. Made of two materials, bicolor opens up an unusual mix: Polyamide meets stainless steel. A flat rose made of stainless steel surrounds a coloured inlay made of polyamide. The rose is available in satin finish or mirror polished stainless steel. PVD nuances in brass, copper, bronze or black chrome are also available to choose from, with a matt or glossy finish. Depending on the lever handle design, up to 16 polyamide colours are available to choose from. The combination of colour and different metallic surfaces sets completely new accents at the door. In this way the door lever fittings become a statement of personal style.

More about this product

Categorised in Hinged door fittings - Bath door fittings - Handle sets - Door locks - Interior construction.
Part of the collection HARDWARE.
Manufacturer HEWI
Family HEWI bicolor
Architonic ID 1538787
Order number 162PCIV02230
Year of Launch 2017
