MASTER BLASTER

Name: MASTER BLASTER
Brand: Liralighting

Lampade outdoor su pavimentodiLiralighting

Home

Lampade outdoor su pavimento

MASTER BLASTER

Informazioni su questo prodotto

Architonic ID: 20273709

DATA

Luminaire body: aluminum

Mounting type: foundation

Ingress protection: IP65

Operating temperature range: from -40°C to +45°C

Lifetime: 60 000h

Impact protection: IK06

OPTICAL DATA

Optical system: lens

Material: PMMA

Light emission: direct

Light distribution: asymmetrical

Contains light source: yes

LIGHTING DATA

Type of source: LED

light source power: 12W

Luminous efficacy from luminaire: 68lm/W

Colour rendering index: CRI>80

Colour tolerance: SDCM<3

Tolerance of luminous flux: +/-10%

ELECTRICAL DATA

Nominal voltage: 220-240V AC

Nominal freguency: 50-60Hz

luminaire nominal power: 14W

Protection class: I

Connection wire: connector

Wiring: through

Dimming: DALI, 1-10V

ON REQUEST

CRI: CRI>90

Colour temperature: 2700K, 6500K Impact protection: IK10

asymmetrical

949lm / 12W / 3000K

949lm / 12W / 4000K

949lm / 12W / 3000K

949lm / 12W / 4000K

949lm / 12W / 3000K

949lm / 12W / 4000K

symmetrical

1897lm / 24W / 3000K

1897lm / 24W / 4000K

1897lm / 24W / 3000K

1897lm / 24W / 4000K

1897lm / 24W / 3000K

1897lm / 24W / 4000K

Concetto

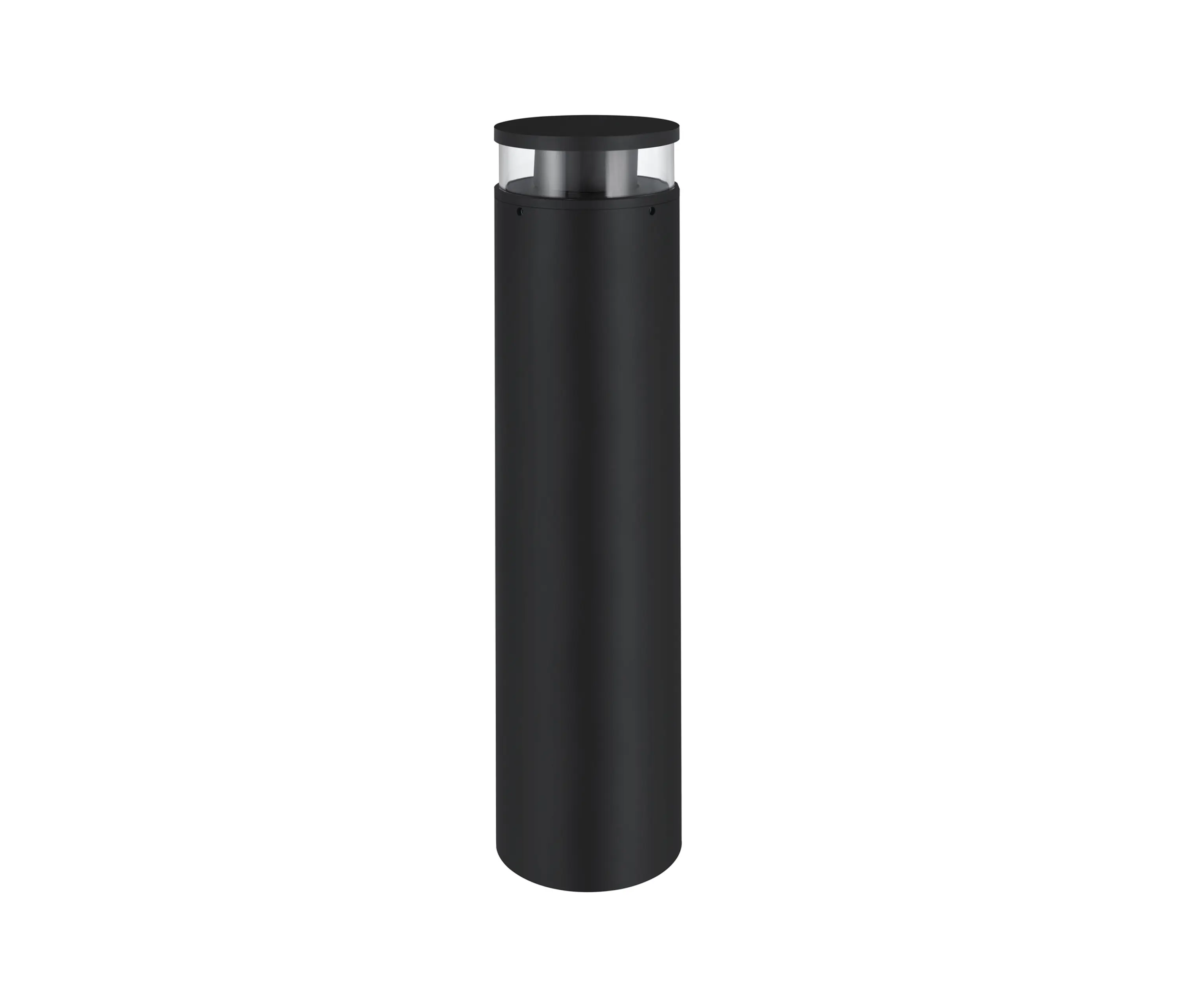

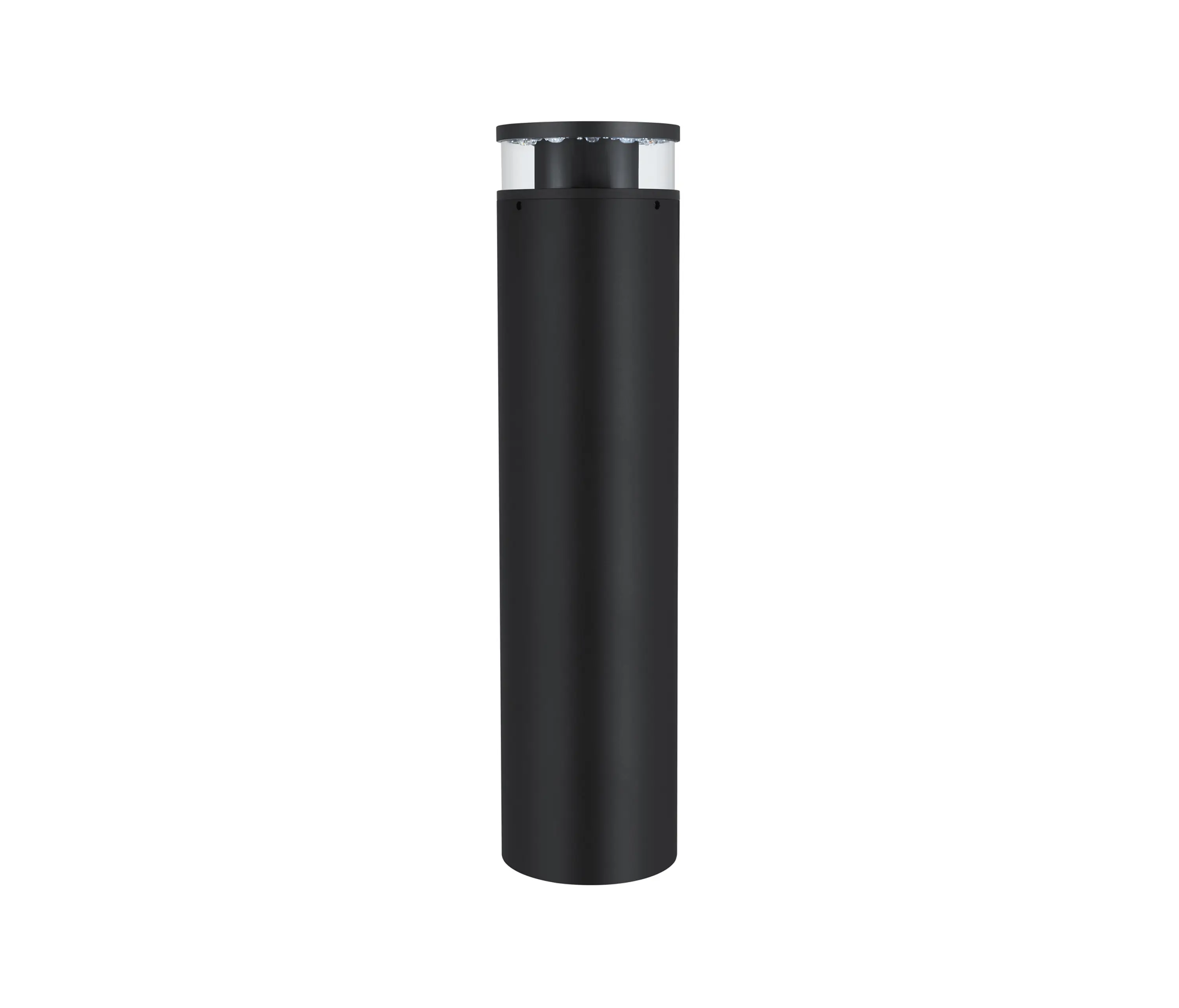

Master Blaster, a family of outdoor bollards that combine elegance, simplicity and functionality.

The luminaire body is made of aluminum. Ingress protection IP65, impact protection IK06 (IK10 on request), protection class I. For a uniform design, the same luminaire head, equipped with an integrated optical system, was used in bollards of different heights: H800mm, H400mm, H200mm. Direct light emission. Available light distribution: asymmetrical and symmetrical. The luminaires are perfect for the illumination of alleys, bicycle paths, squares, parks and gardens.
