Modul L 196 Sequence 2 With Indirect Light
- Home/Lampade sospensione/

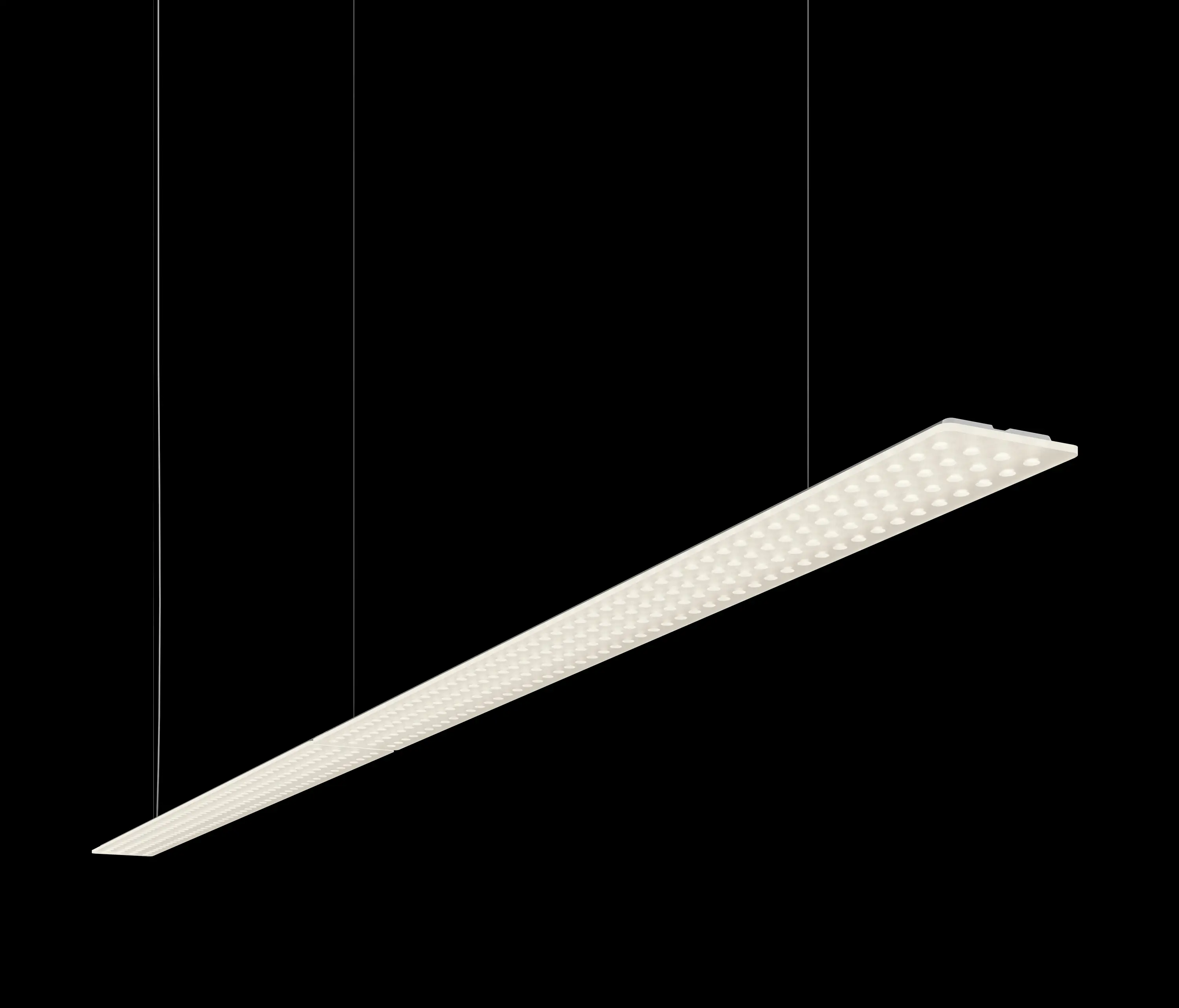

Modul L 196 Sequence 2 With Indirect Light
Informazioni su questo prodotto
Architonic ID: 1269008
SKU: 545-853 (2700 K)/545-854 (3000 K)/545-855 (4000 K)
Anno di Lancio: 2014
Extremely slim, height-adjustable linear LED.next luminaire for wide-area room lighting for offices and workplaces, sequence of two luminaire modules L 196, mechanical and electrical link by a connector element, version with additional indirect lighting for atmospheric ceiling illumination, support made of anodised aluminium, diffuser made of matt acrylic glass, 392 conical indentations for directing light, glare reduction in accordance with DIN EN 12464-1, suitable for the workplace, 85 % direct beam, 15 % indirect beam, version for 24 volts or external converter, set includes 1 x modul connector made of aluminium, white powder coated, 3 x stainless steel suspension cables, adjustable from 100 to 1500 mm.
dimensions:
3023 x 135 x max. 1500 mm
LED technology, 55 W power supply, 24 V V DC
luminous flux:
7600 lm
IP 20
Concetto
In terms of form, the new Modul L luminaires fit seamlessly into the Modul Q and R ranges and add an elongated suspended luminaire to the product family which provides efficient, wide-area room lighting for offices and workplaces. The individually suspendable Modul L 196 with its 40 watt power consumption is the perfect alternative to conventional louver luminaires. With a minimal height of just 19 mm, it fits in perfectly with the surrounding architecture and its optimised conical indentations provide a pleasant light in compliance with DIN 12464-1 specifications for glare suppression. Additional indirect lighting for atmospheric room illumination can be integrated in the extremely slim central technical channel of the Modul L 196.
Questo prodotto appartiene alla collezione:
Specifiche del prodotto
Material
Acrilico, Alluminio, Metallo, Plastica
